Changing your brake pads on your mountain bike


The two videos attached, show the process, one with a Shimano system the other with a SRAM.

I created the two videos below to show you how it's done.

Watch the video and read the instructions below carefully before starting the process on your own.  Do the work on your own bike and finish with a feeling of accomplishment. The process is pretty simple. Just take your time.



So, you're ready to hit the trails, but before you do, it's essential to ensure your mountain bike's brakes are in top condition.

 I’ll walk you through the step-by-step process.

First things first, gather your tools and a set of compatible brake pads for your bike.

I’m using the TraxFactory Stomper Compound pads. These pads are high quality and made for numerous braking systems, including Magura, SRAM, Hayes, and Shimano. Check the website for the make and model of your brakes to ensure you get the right set of pads.



Step 1: Gather Your Tools

Before we begin, make sure you have all your tools ready: new brake pads specific to your bike's brake system, Allen keys or screwdrivers, a rag or paper towel, rubbing alcohol or brake cleaner, a small brush, and pliers if needed.


Step 2: Remove the Wheel, this is optional depending upon how easy or hard it may be to get to your brake pads.

I  will start by removing the wheel, in this case the front wheel for the example,  to give yourself more space to work. This step is not always necessary but can make the process easier.

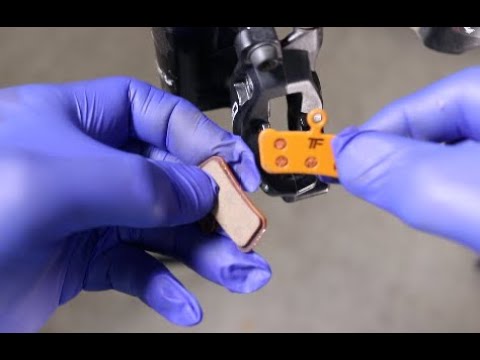

Step 3: Remove the Old Brake Pads

Locate the brake pads and the retention mechanism. It could be a bolt or pin.

Use the appropriate tool to loosen and remove the retaining hardware.

Slide out the old brake pads from the brake caliper.


Step 4: Clean the Brake Caliper

The caliper may need to be pushed back, to allow the pads, now thicker being they are new.  Use a plastic tire lever to ease them back without damaging them. “Do not use a metal tool of any kind” or a screwdriver, as this could damage the caliper and piston(s).

Keep the new pads clean and avoid touching them with your hands as the oils in your skin can contaminate the pads, not allowing them to perform their best.  Some type of rubber glove with help from the oils from your hand touching the new pads.


-Clean the brake caliper thoroughly using rubbing alcohol and a small brush. Remove any dirt, oil, or debris that could affect braking performance.


During this entire time when the pads have been removed, DO NOT squeeze the brake lever on your handlebars!


Step 5: Install the New Brake Pads


Take your new brake pads and insert them into the brake caliper.

Make sure to keep the spring attached to them, that is how the pads return to their position after applying.


Ensure they are correctly positioned and align with the braking surface.

Reinstall the retaining bolt or pin to secure the new brake pads in place.


Step 6: Adjust if Necessary


Check the alignment of the brake pads with the rim or disc rotor.

Make any necessary adjustments using the adjustment screws on the brake caliper to ensure even contact.

To recenter the pads after installation, loosen the brake housing, then while applying the brake, tighten the housing bolts down.

Let go of the brake lever and the pads should now be centered on the rotor.


Step 7: Reinstall the Wheel


If you removed the wheel, securely reinstall it onto the bike.


Step 8: Test the Brakes


Squeeze the brake lever to test the brakes.

Spin the wheel and check for any rubbing or uneven braking.

Make further adjustments if necessary to optimize brake performance.


Step 9: Bedding-in Process (Optional but Recommended)


Optionally, go for a gentle ride, applying the brakes lightly to allow the new pads to bed into the rotor surface.


Step 10: Final Checks


Double-check all bolts and pins to ensure they are tightened securely.

Verify that the brake pads are clean and free from any contamination.



And there you have it! You've successfully changed the brake pads on your mountain bike. Now you're ready to hit the trails with confidence.


Follow these simple instructions for the other set of brake pads and you’re done.


Make sure you do some research and find out the best pads, size shape and material to fit your brake system.
